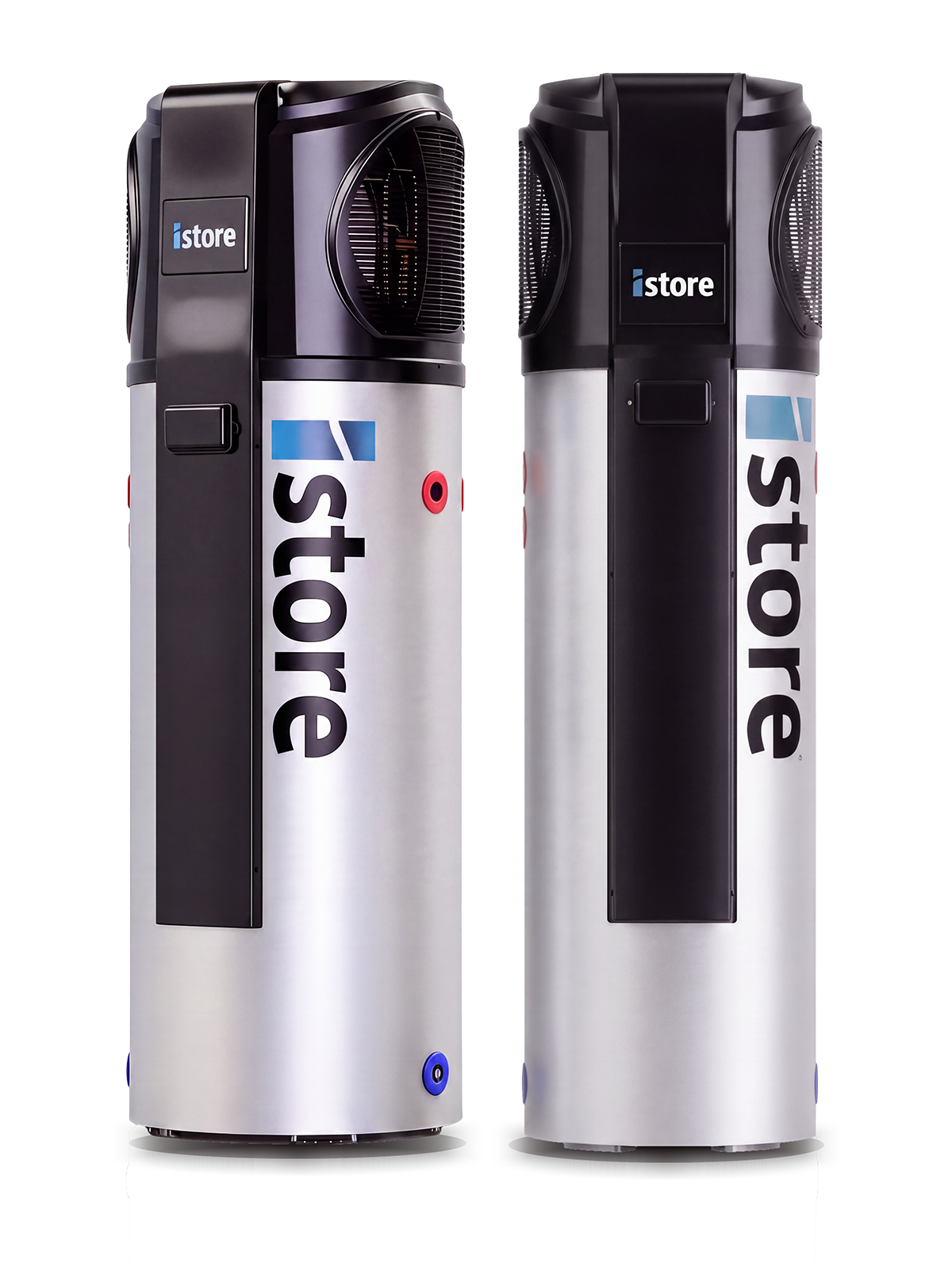

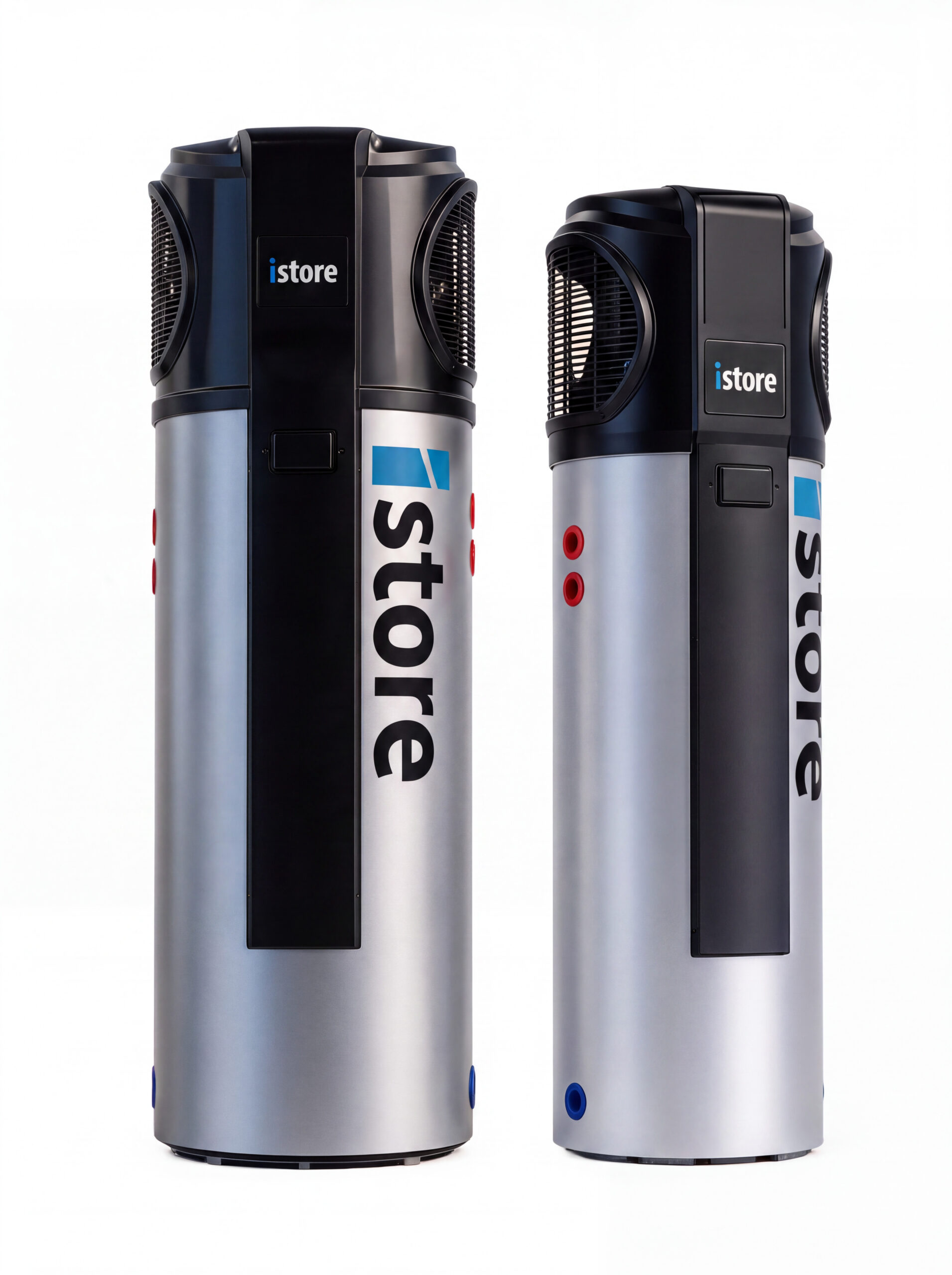

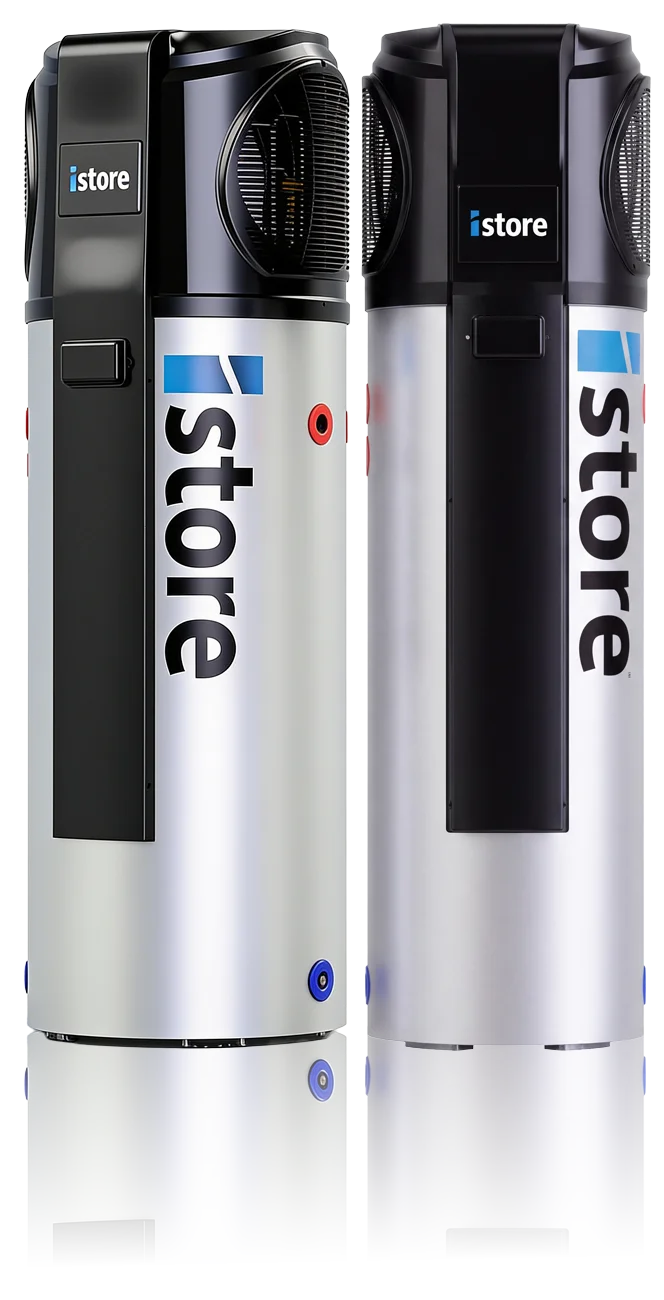

THE ISTORE 180 & 270 LITRE

Learn more

The iStore revolutionises the way your home produces hot water by utilising the most natural source. Air!

For the average Australian household heating water accounts for up to 30% of the total energy usage. The iStore saves you hundreds while saving the planet!

Up to 27% of your energy bills can come from heating your hot water.

iStore technology will clobber your electricity costs effectively using renewable energy

Solar without the panels, the iStore’s dynamic efficiency can reduce your hot water heating costs by up to 70%, utilising intelligent technology which converts air into hot water via the transfer of thermal energy.

WATER HEATING COST COMPARISON

Heating hot water for your home accounts for up to a quarter of your electricity costs for the average Australian household.

The iStore reduces hot water heating consumption by two thirds from conventional electric or gas storage systems, while reducing CO2 emissions by 2.9 tonnes.

Installing an iStore could save you up to $1,000* per year on your energy bills.

^Tariffs based on WA pricing, $0.25 per kWh for electricity, Natural Gas price of $0.0351 c/MJ & LPG price of 1.25 $/L. Actual savings may vary on household usage, solar power system and climate conditions.

Economical

The iStore boasts 4 intelligent operating modes adapting to all situations, including a hybrid mode for when additional guests are staying in your home and a vacation mode for when you are away on holidays.

Optimal design

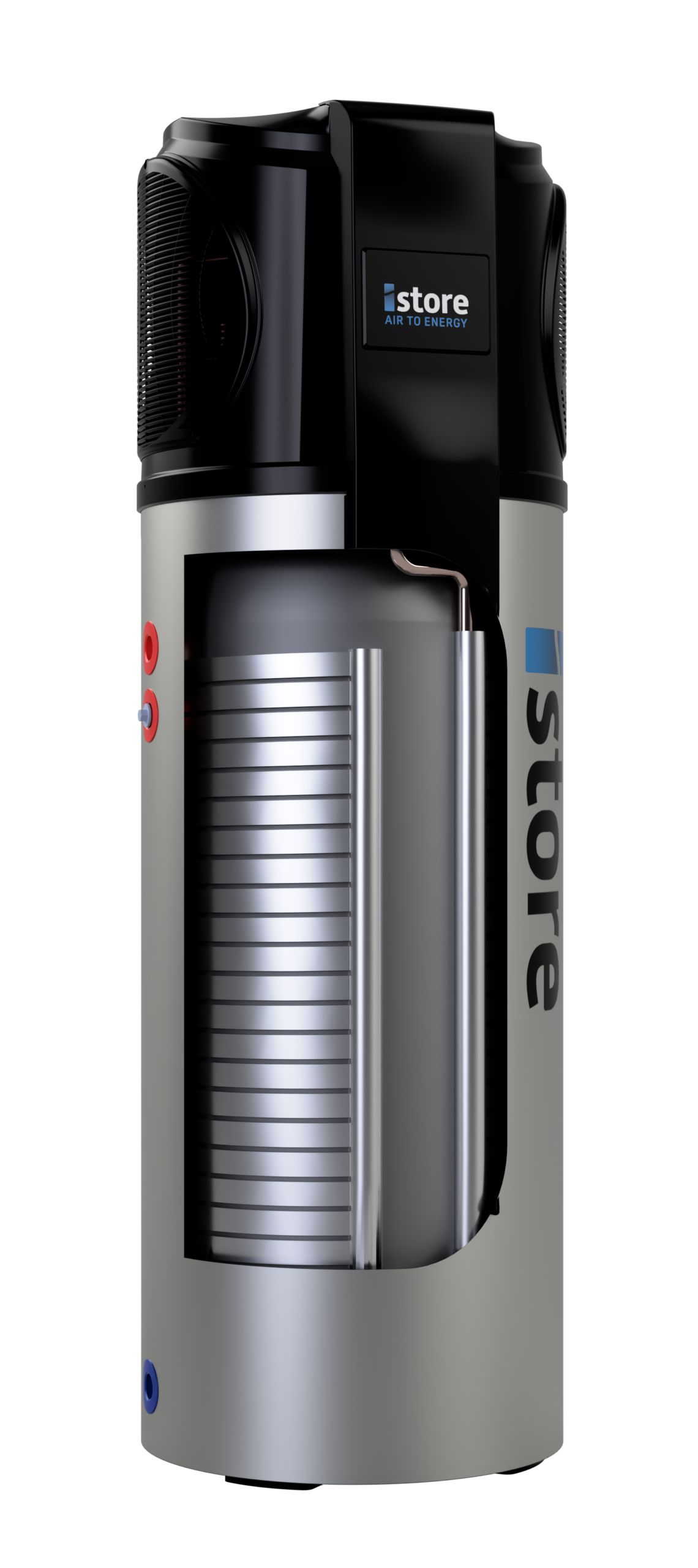

External wrap around ALL COPPER heating coil and dual anodes for superior system longevity.

Easy to install

The iStore is easy and quick to install.

Energy efficient

The iStore consumes approximately 500 W of energy per hour during the air-to-energy heating process

Energy savings

Heating water for the home accounts for up to 30% of the total energy usage for the average Australian household. iStore can reduce CO2 emissions by up to 2.9 tonnes.

Market leader

The coefficient of performance (COP) measures the efficiency of electricity consumption versus heating output. The iStore 180L has a COP of 4.37 at 20 degrees ambient, heating the tank from 15 to 60 degrees. This means it provides 4.37 kW of heating output for each kW of energy used.

How iStore works

A fan draws in air, containing heat energy, across the evaporator
The evaporator turns the liquid refrigerant into a gas
The compressor pressurises the refrigerant into a hot gas
The hot gas inside the condenser coil heats the water inside the coil-wrapped tank
The refrigerant reverts back to a liquid after heating the water and continues to the evaporator for the process to start again
The cycle continues until the set target temperature is achieved.
As water is used in the home, the cycle will restart once the temperature in the tank has dropped below 45 °C

Product Specifications
Heating capacity	kW	3.4
Water tank capacity	L	270 L
Power input	kW	0.94
Running current	A	3.97
Power supply	240V	~/50H z
Rated outlet water temp.	°C	60
Air volume	m ³/ h	450
Noise @ 1 m	dB (A)	46.6
Water inlet / outlet size	BSB / mm	20
Back up element	kW	1.5
IP Rating		X4

Dimensions
Height	1955 mm
Diameter	640 mm
Height to water inlet	99 mm
Height to water outlet	1194 mm
Hot water condensation
Height to PTR valve.
Height to anode	1094 mm
Net weight	157 kg

Warranty Information
Cylinder	5 years
Refrigeration & electrical	5 years
Valves or Accessories	1 year
